Manual Placement

Adding to Load Plan

Items are visible. When a new product is created, it is listed under its group. A counter (e.g., 0/1+) to the right of each product section indicates how many units of that product are currently placed in a loading plan. During manual loading, the counter is updated instantly as products are added, making it easy to track how many units of each product have been loaded.

Position Items

Clicking an item once selects it, allowing you to move its position within the load plan. To exit selection mode, press Esc or click on an empty area.

Auto Rotate On–Off

Manual Placement includes a toggle for Auto Rotate. When enabled, items are automatically rotated to fit as you move them. When disabled, items will not rotate automatically, and placement into restricted areas is prevented.

Auto Rotate Is On:

Auto Rotate Is Off:

Rotate Items

In Manual Placement, clicking the “Placement” button once activates rotation mode for the selected item. Rotation handles appear along the X/Y/Z axes, allowing you to rotate the item freely. Clicking the same button again switches back to placement mode, enabling you to move the item instead of rotating it.

Deleting Items

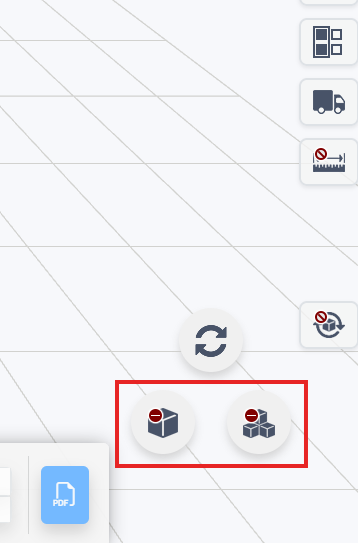

In Manual Placement mode, you can remove items from both the scene and the load plan by using the corresponding delete icons in the toolbar, either to delete selected items or to clear all at once.

• Delete Selected:Removes only the currently selected item or items.

• Delete All:Clears the entire scene and deletes all items from the load plan at once.

Revert Back

When an item is already added to the load plan and you change any of its core properties — such as dimensions (length, width, height), weight, orientation, or handling options — the “+” button is disabled because the modified version is treated as a different configuration. (Changes to name, count, or color do not affect the button.) To add the modified item again, you must either remove all previous instances from the load plan or use the revert icon to restore its original properties.

• Remove all previous instances of the item from the plan, or
• Use the revert icon to discard the changes and restore the original properties.
