3D Visualization

Viewing your load plan in 3D makes it easy to understand every detail of your container.

  • Rotate: Inspect the container from all sides.
  • Zoom: Focus on specific items or sections.
  • Pan: Move around freely to get the perfect view.

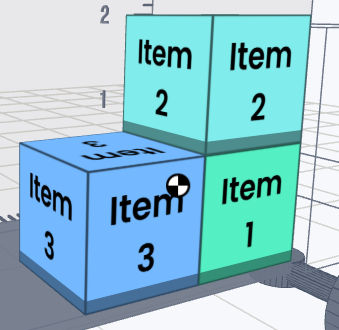

Center of Gravity Visualization

The center of gravity for all items is calculated based on their physical properties and displayed in the 3D view as a black-and-white sphere.

  • This visualization is automatically updated whenever an item is added or removed.

Item Highlighting

This feature makes all other items transparent and highlights the selected one, helping users quickly locate and identify it within the 3D loading space.

Weight Distribution and Center of Gravity

As items are added, the algorithm continuously calculates the overall center of gravity of the loaded cargo.

  • This is displayed as a black-and-white sphere inside the space in the 3D view.
  • The position updates dynamically with each newly added or rearranged item.

This allows the user to:

  • Visually analyze how weight is distributed within the space.
  • Adjust items manually (by moving or rotating them) to achieve a better balance if needed.

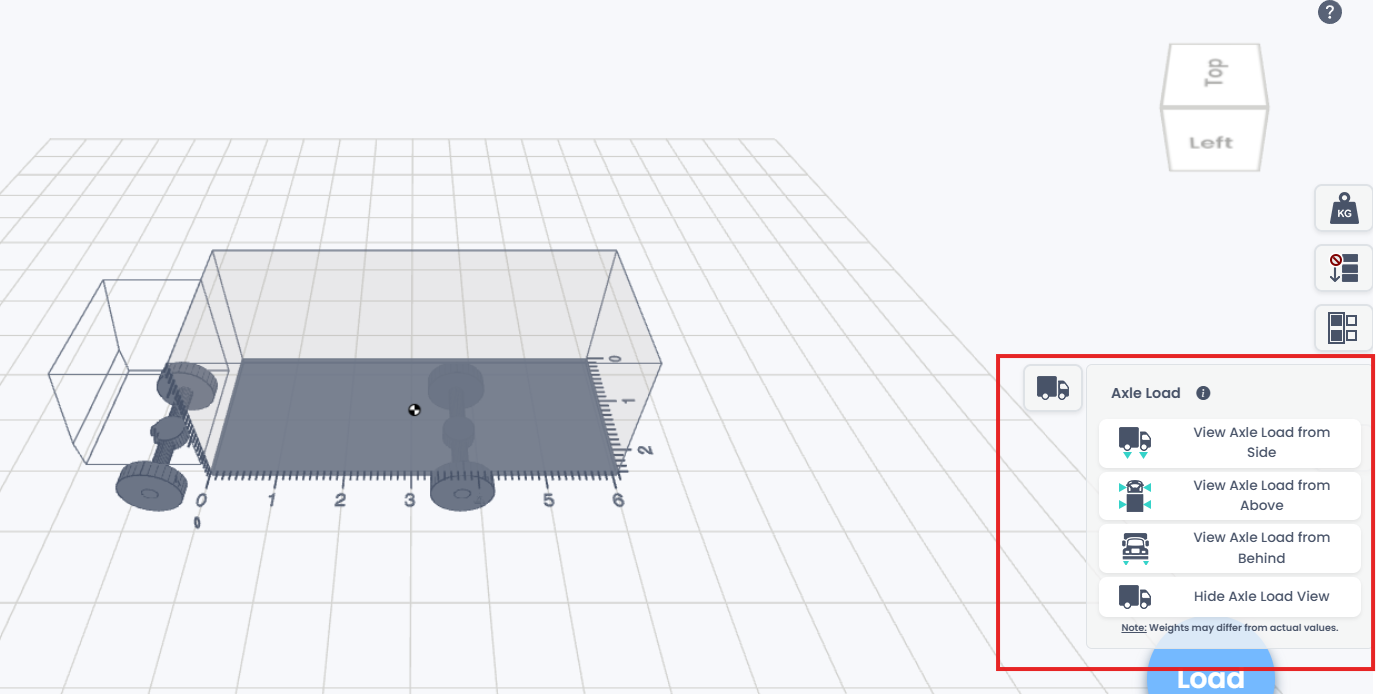

Axle Load View

Clicking the + icon adds one unit of the item to the 3D load plan and simultaneously increases the Count value. This makes it easy to add multiple instances of an item without manually updating the count beforehand.

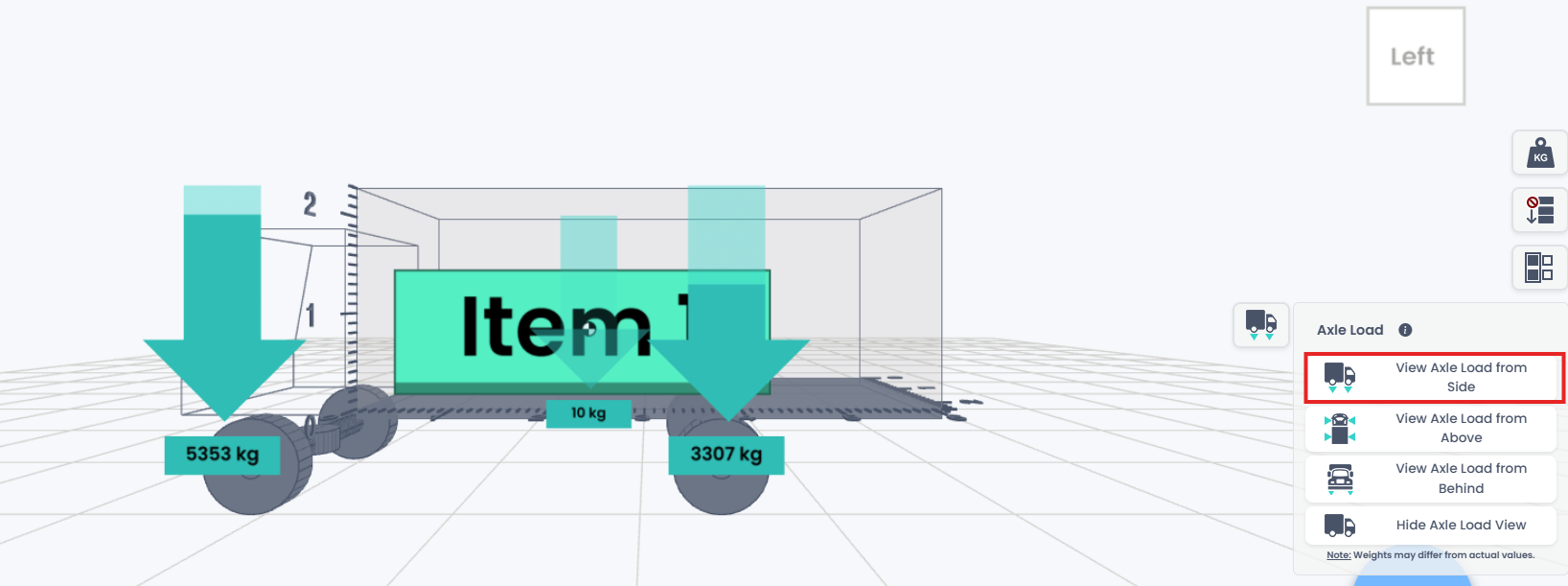

View Axle Load from Side

This view provides a real-time visualization of the front and rear axle loads (units follow your Unit Settings: kg or lb). It enables operators to validate within the simulation environment the interplay between load position, center of gravity, and wheelbase prior to field execution.

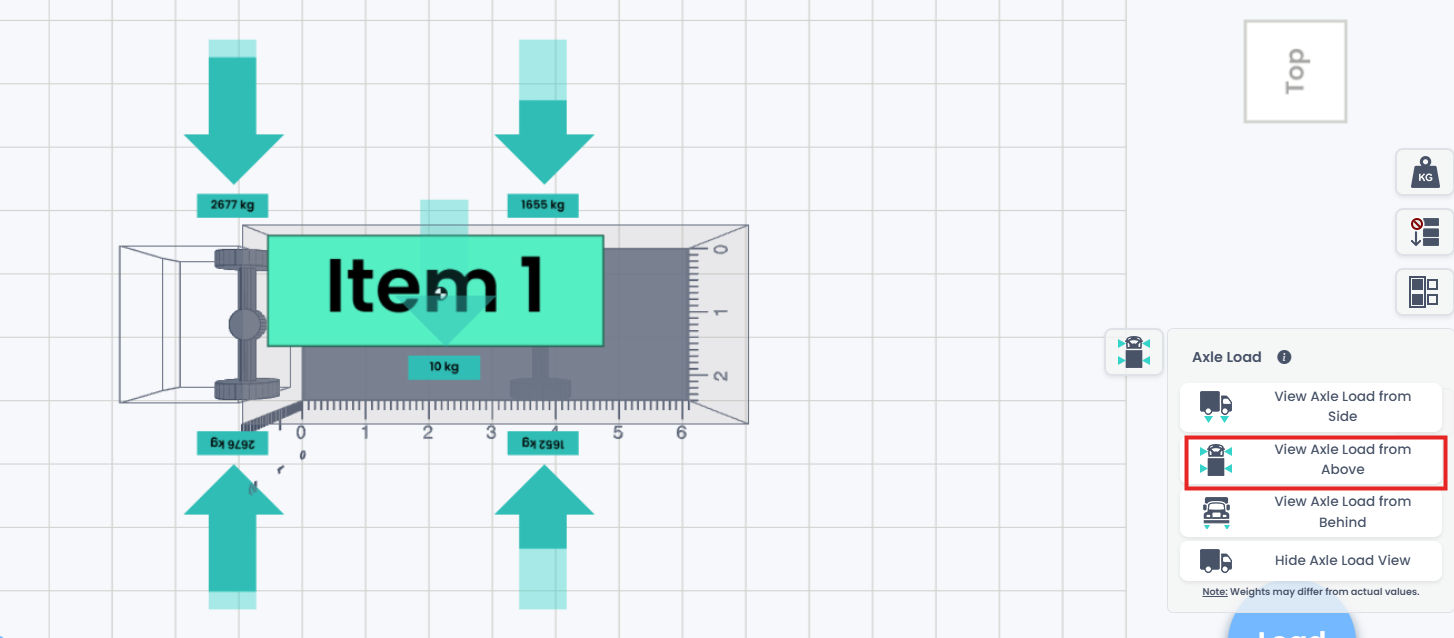

View Axle Load from Above

This view labels the load on each axle individually (units follow your Unit Settings: kg or lb). The objective is to validate per-axle distribution, rather than focusing solely on front vs. rear.

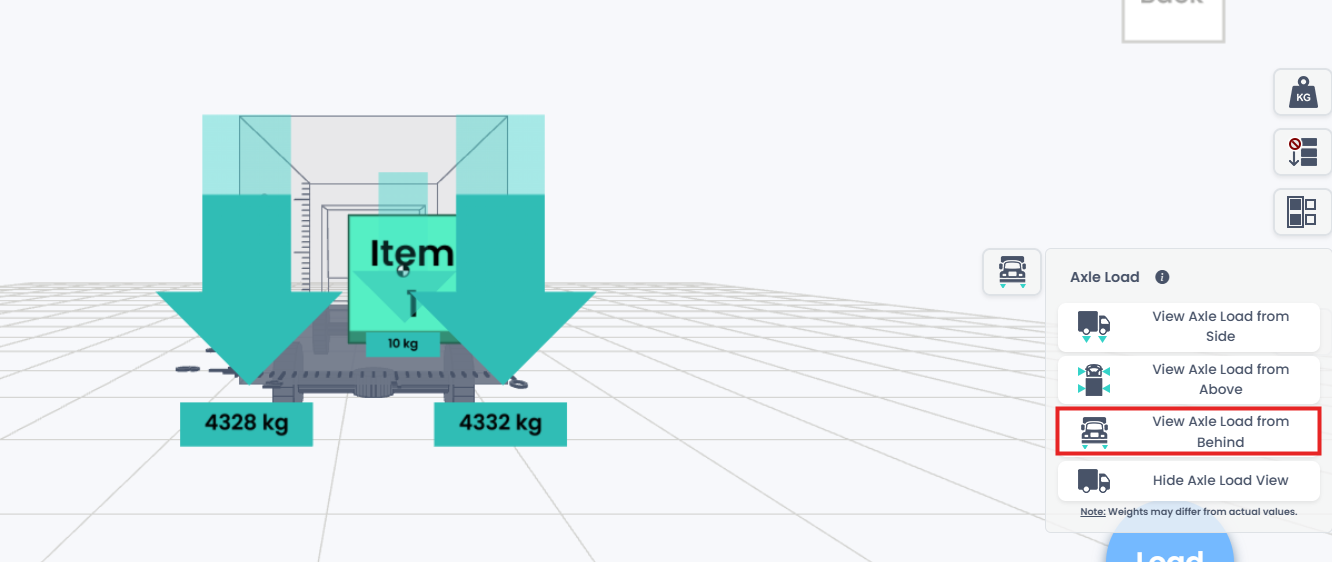

View Axle Load from Behind

This view aggregates and labels the total load on all left-side axles and the total load on all right-side axles (units follow your Unit Settings: kg or lb). Values update in real time as cargo position changes.
